Product Specifications

Product Type:
Lightweight Composite Wall Panel
Size:
610*2270*5MM. 610*3000*5MM, 610*2440*6MM, 610*2440*5MM,etc.
Thickness:
60~200MM

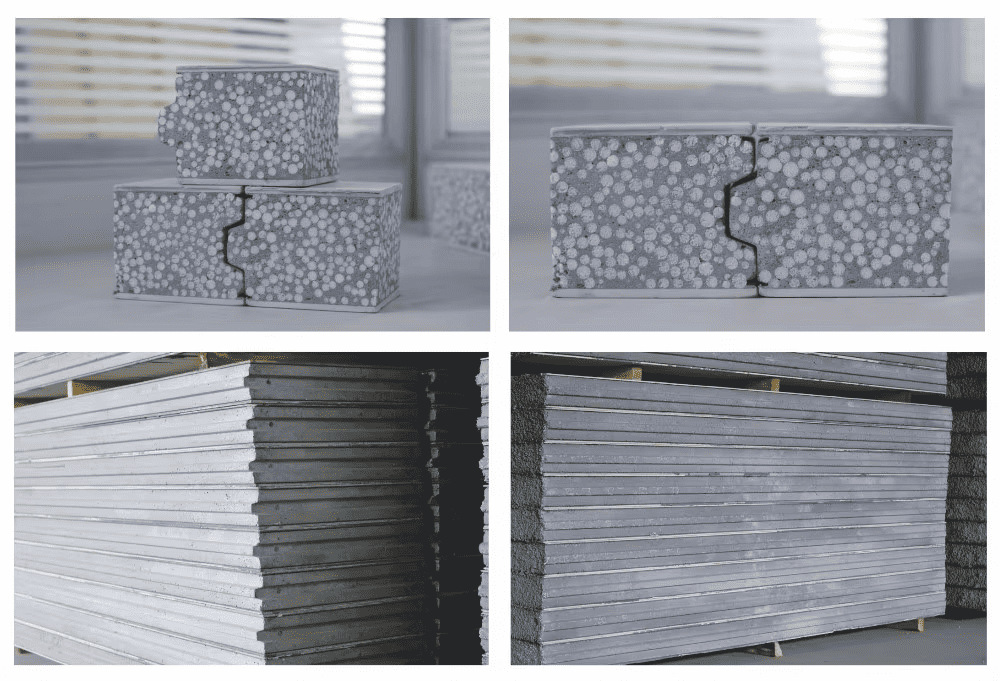

Edge:
As Shown In The Picture

Product Description

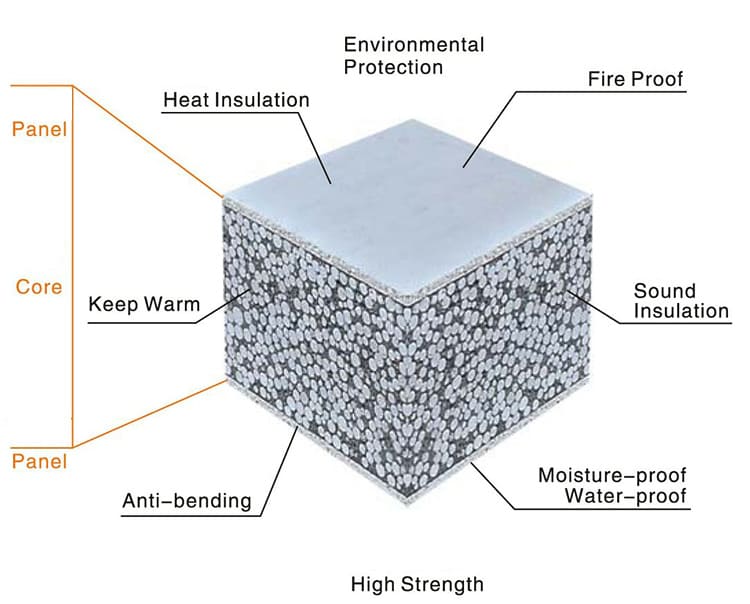

Are you still working in dirty and wet construction site, moving many heavy machines to the site? Are you still waiting for more than half a year before you can move inside to your new house? Are you still paying high salary to the workers and still unhappy about the final work? You are so lucky to be here and get to know the best substitute to traditional concrete wall, it is called light weight EPS sandwich panel. Comparison with other wall materials, this one is more stronger and longer life span with many advantages and wide usages. TRUSUS EPS (Expanded polystyrene board) wall Panel is composed of exterior panels and interior core filling, to form a non-load-bearing light-weight composite wall panel. The exterior panels on both sides are 5mm calcium silicate board, and the middle core is filled with polystyrene beads & cement or ceramsite, polystyrene beads & cement.

Product Features

  1. Energy-saving, lightweight, and environmental protection
  2. Plystyrene granule in Vanjoin board has good heat-insulation effect and heat lost ratio is far below the other brick wall building
  3. Energy-saving effects of the building is greatly improved
  4. Raw materials do not include harmful substances
  5. Environmental products, it is highly recommended by the government
  6. Capacity: 650kg/m3, just one sixth of the brick building
  7. Comparison of inner wall panel 75 and 120mm it will increase 12m practical area, for 100m2 house, it will increase 4.16m2
  8. Waterproof and damp resistant
  9. With fireproof feature

Product Details

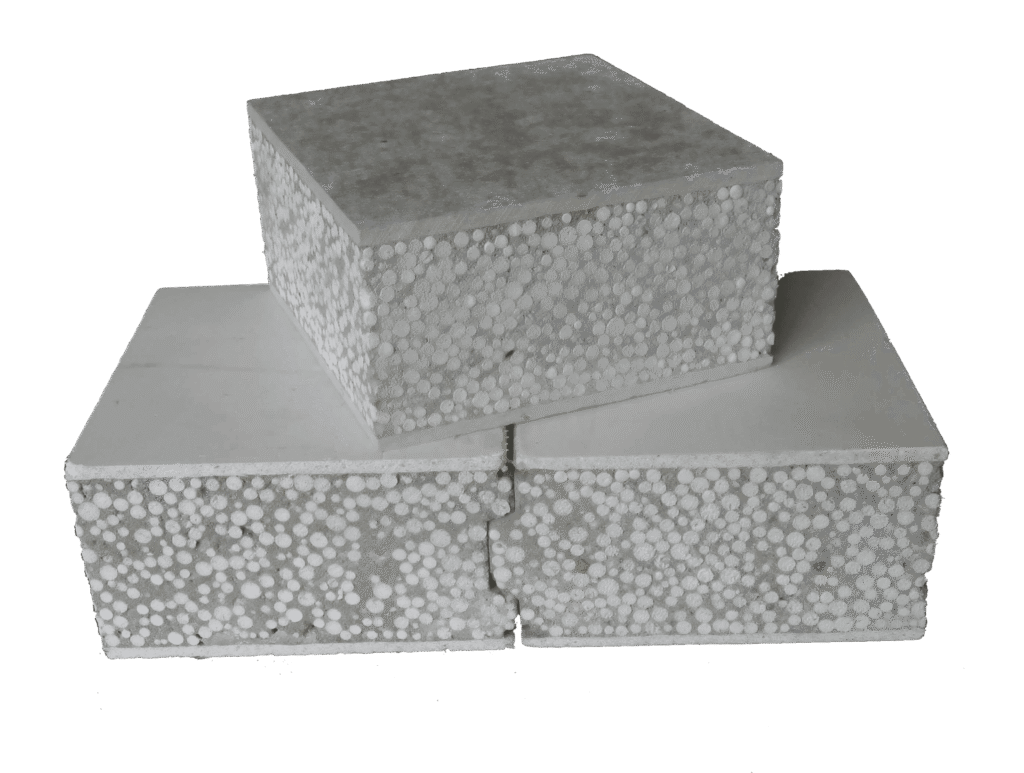

Lightweight Composite Wall Panel

Types:

1) Light weight EPS sandwich panel(with face board and without face board)
2) Ceramiste sandwich wall panel (with face board and without face board)
3) Perlite sandwich wall panel (with face board and without face board)

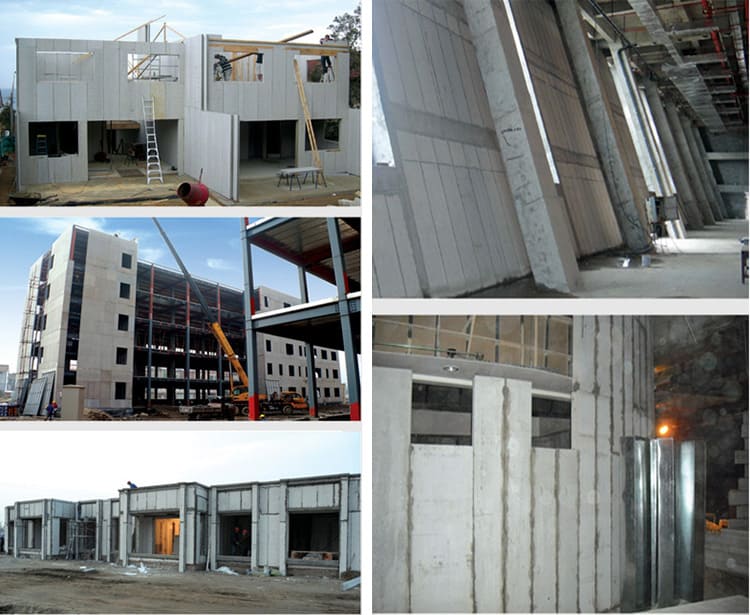

Applications:

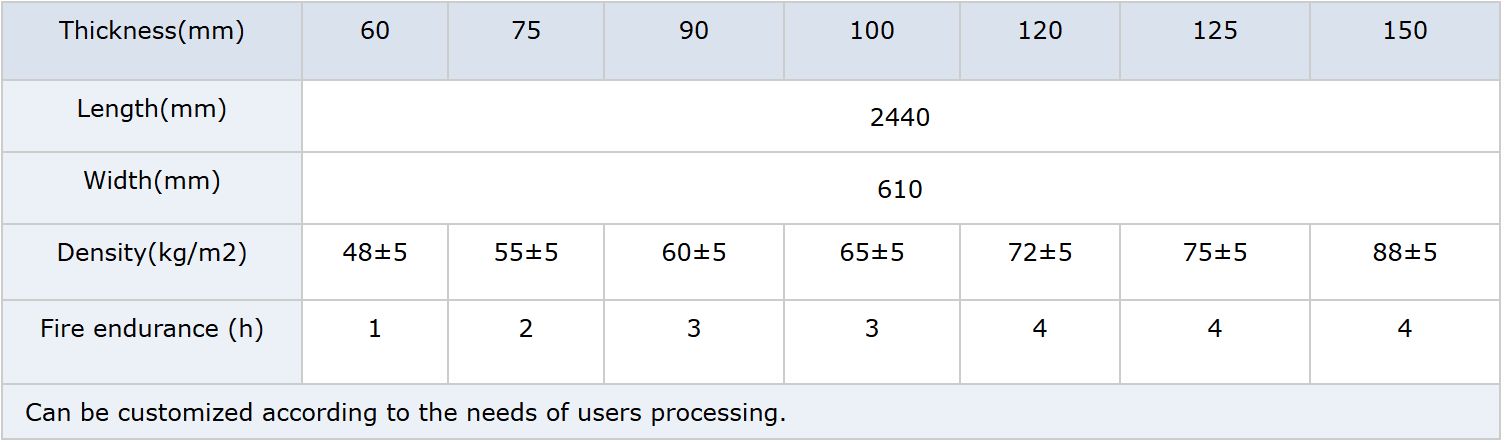

Size:

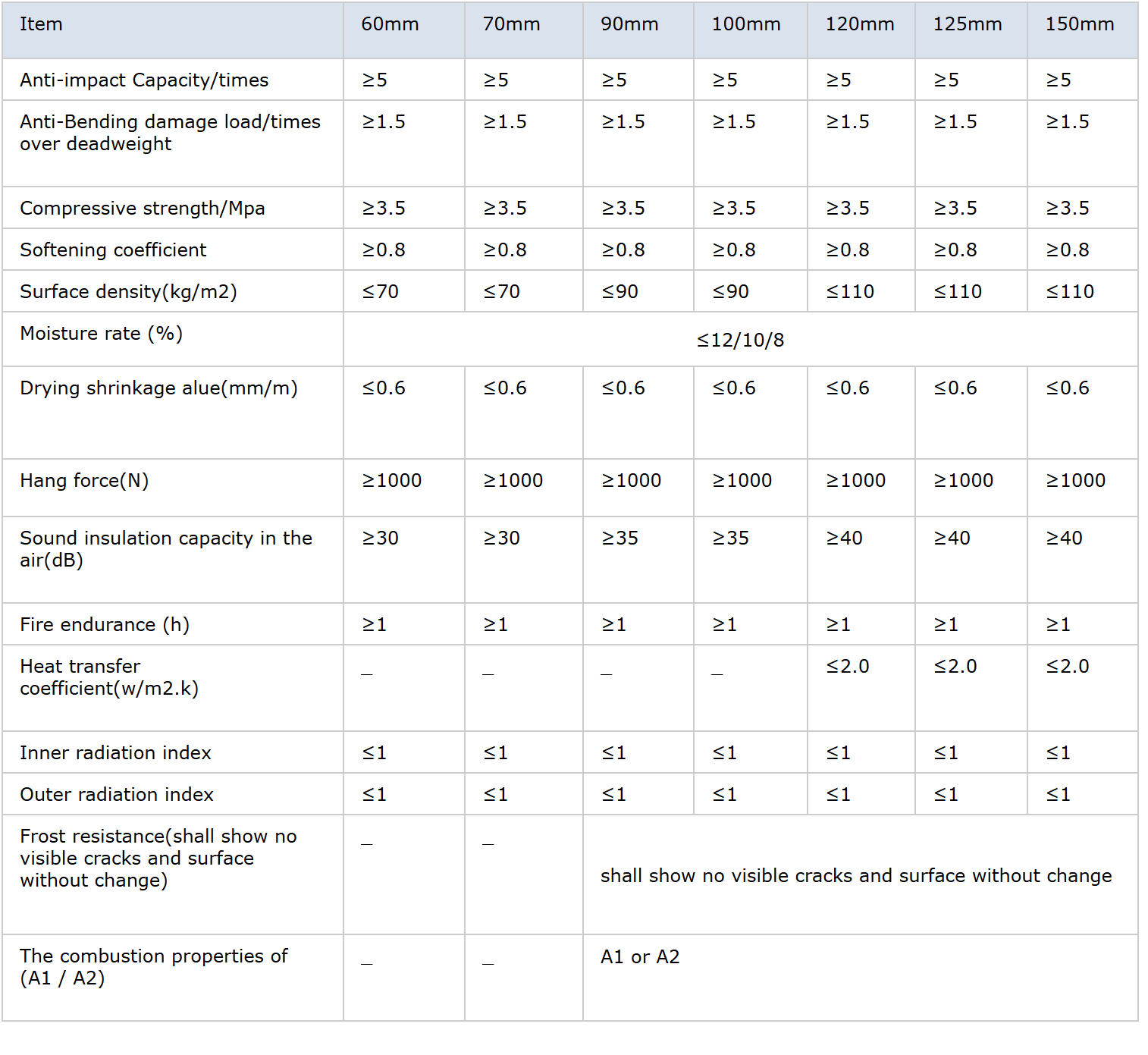

Technical Data:

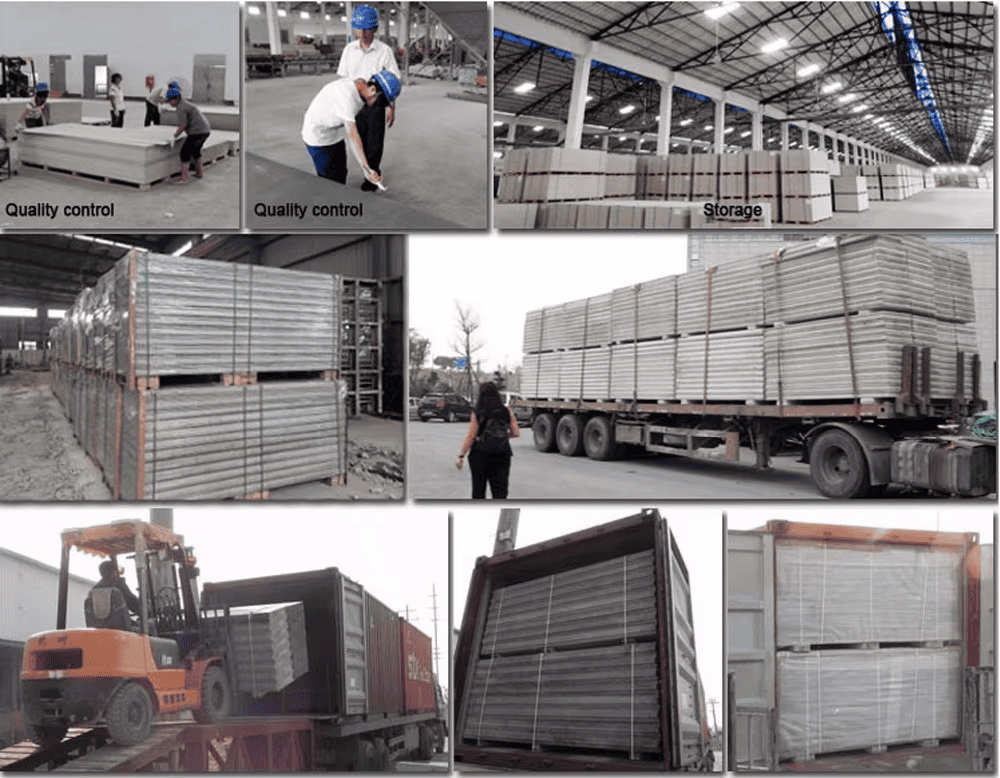

Packing & Delivery
