Calcium Silicate Board

Product Specifications

Product Type:

Calcium Silicate Board

Size:

1200x2400MM, 1220x2440MM, The maximum length can reach up to 3600MM.

Thickness:

4-25MM

Edge:

Square/Tegular

Product Description

TRUSUS make the raw material (Raw materials: pure quartz powder, quick lime, calcium silicate, plant fiber and many fined mineral stuffing including dispersant and additive) into a wet sheet and then through high temperature and high pressure autoclave for more than 10 hours by advanced technology. That it will compose a special calcium silicate board. There is no asbestos, brucite and meerschaum in the raw materials and the formulations at all.

Product Features

The raw materials of fiber cement board are cellulose fiber, silicate cement, quartz sand, water and some additives
It’s a kind of high-tech product which formed through accurate dosing by computer program, hatcheck craft and compressed by 14000tons hydraulic machine and autoclave under high temperature and pressure
Thickness: 4-30mm；Standard size: 1220*2440mm or 1200*2400mm （other specification is available according to client’s requirement）
We can also produce colorful fiber cement board, including grey, yellow, black, blue, white, red and so on
Three kinds of edge: square edge, small tegular edge and big tegular edge
It can be used in interior and exterior wall, furred ceiling, insulation materials, floor, road barrier, sound-adsorbing wall & suspended ceiling

Product Details

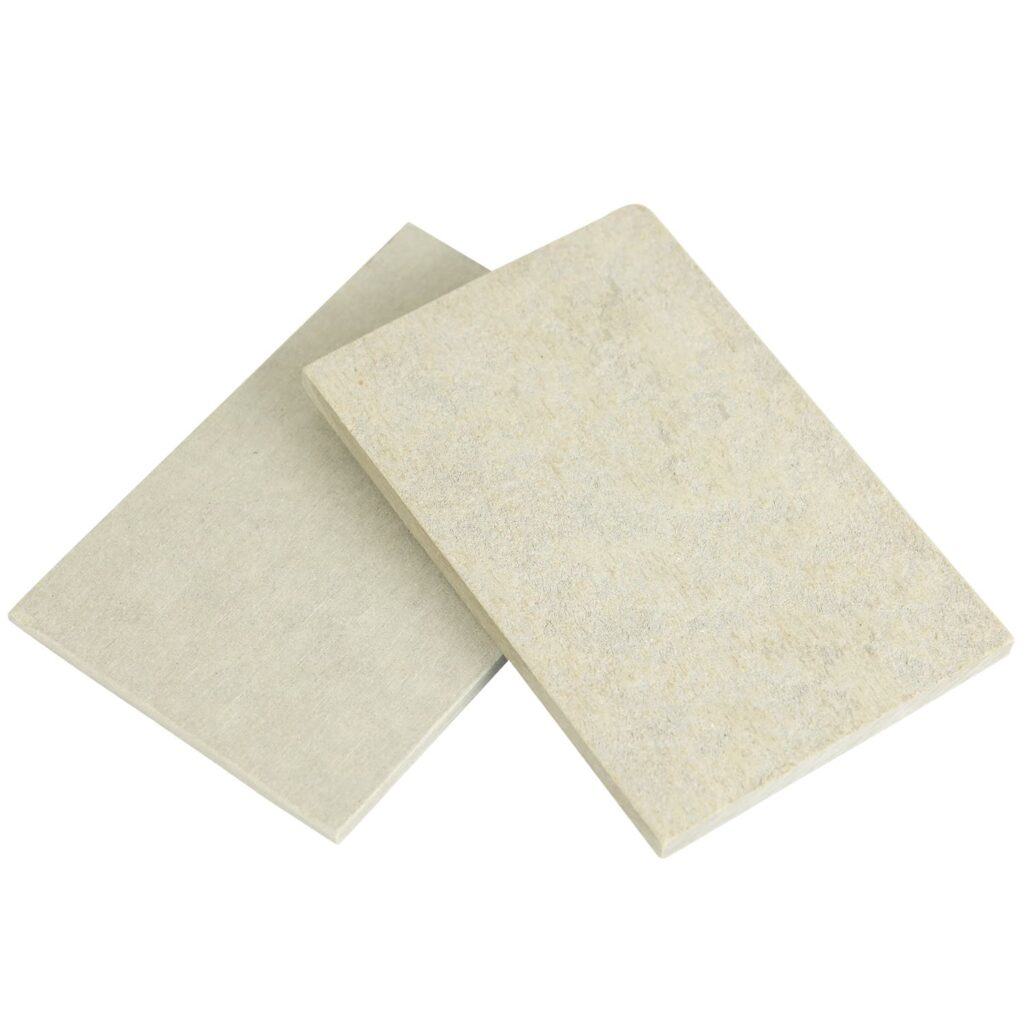

‌CALCIUM SILICATE BOARD

Size:

Small board: 595*595mm /600*600mm /603*603mm /595*1195mm /600*1200mm

Big board: 1200*2400mm /1220*2440mm /1220*3050mm

Thickness: 4.5, 5, 6, 8, 10, 12, 15, 18, 20, 25mm (3.5-30mm)

Remark: Other specification is available.‌

Feature:

Water resistant – no swelling or loss of stability

Resistant to moisture and weathering

Freeze-thaw cycle proven

Impact resistant

Safe and hygienic material

Non-combustible

Composition:

Inorganic blend of siliceous (SiO₂), calcareous (CaO) materials, reinforced with mineral/cellulose fibers.

Production:

Pulping → forming → autoclave curing (high-pressure steam) → silicon-calcium gel formation.

Application:

TRUSUS Calcium Silicate Board is available for indoor suspended ceiling and outdoor walls such as school, office, hospital, sports center, restaurant, hotel so on so forth. It works well water resistant and moisture resistant

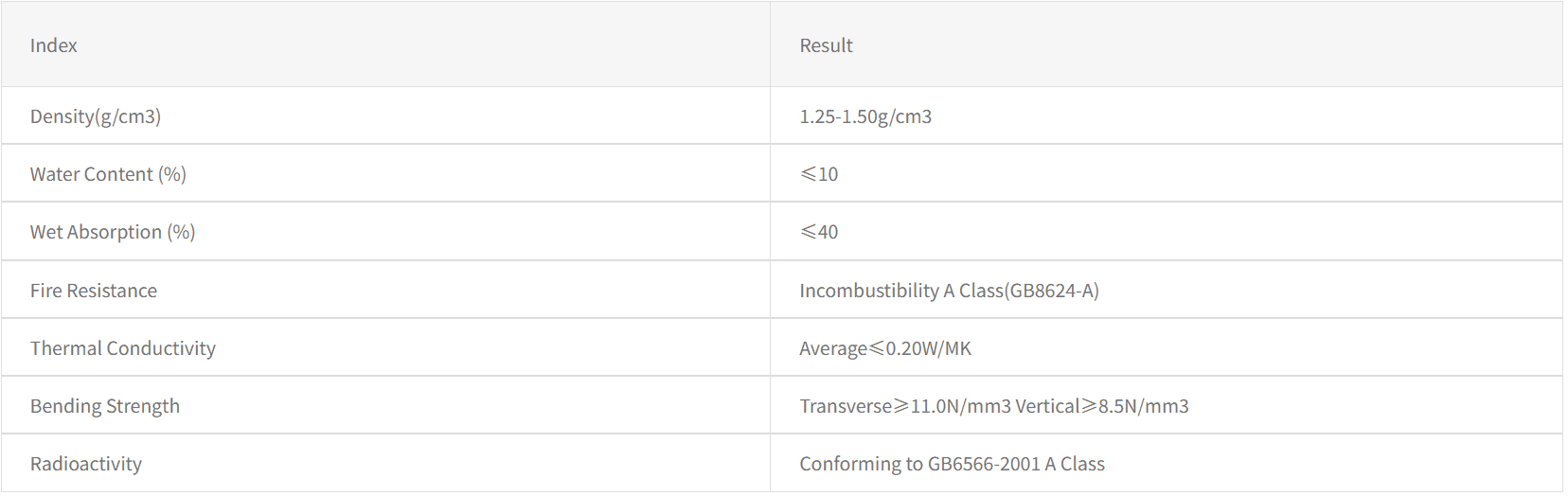

Specification:

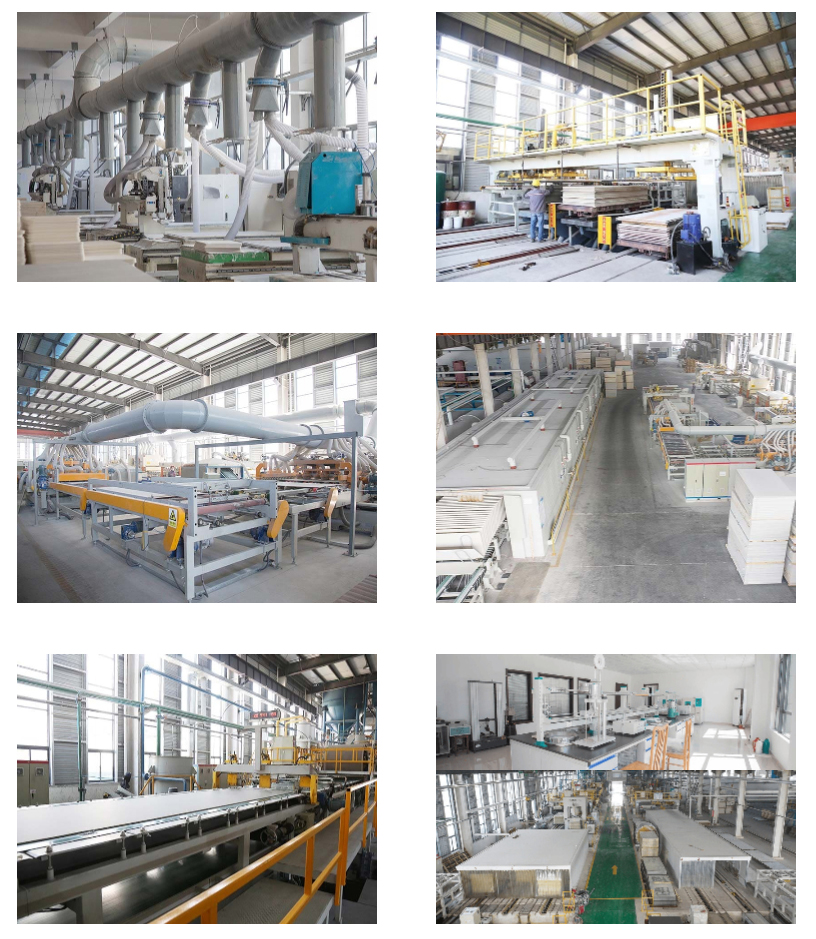

Workshop:
